Temporary Horizontal Lifelines

Sayfline™ Horizontal Lifeline System





* System is lightweight (12 lbs.) and extremely portable owing you to move it and reuse it over and over again

* Complete with kernmantle rope lifeline assembly with a tensioning device for ease-of-use

* Two tie-off adaptors are included to anchor the system to a structure

* System length = 20 ft. (30, 40, 50, 60, 70, 80, 90 and 100 ft. systems are also available)

* Meets or exceeds applicable industry standards including OSHA and ANSI.



The Sayfline™ horizontal lifeline systems are not only lightweight and easy to inst, they are also extremely portable. Just disassemble and take to the next job. Engineered with DBI/SALA attention to quality and detail, the Sayfline™ systems will work alongside you during maintenance, bridge work, construction and manufacturing with absolute safety and reliability.

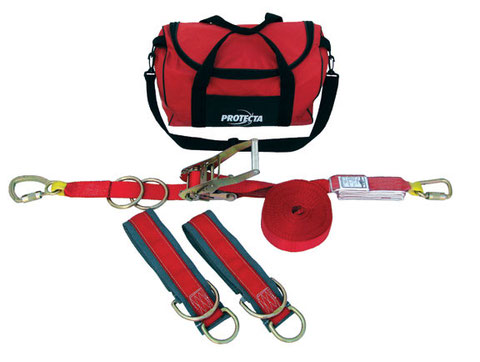

PRO-Line™ Temporary Horizontal Lifeline

Extremely fast set-up, removal and storage with built-in tensioner and carrying bag - no special tools needed



*Complete kit includes two tie-off adaptors for simple anchorage to structure

*Built-in shock absorber reduces anchorage loadings to preserve the structure

*F arrest rated for two users provides jobsite flexibility

*60 ft. (18m) web lifeline is compact, portable and versatile

*Meets applicable industry standards including OSHA regulations

Ultimate Jobsite Versatility



The PRO-Line™ horizontal lifeline systems are lightweight, easy to inst and extremely portable. Just disassemble and take to the next job. PRO-Line™ systems will work alongside you during maintenance, bridge work, construction and manufacturing with absolute safety and reliability.



Fast and Easy Instation



The PRO-Line™ system insts in seconds, without special tools or equipment, maintaining optimum worker productivity. Simply attach the lifelline and tie-off adaptors to 5,000 lb. (22 kN) rated anchorage points and tension the lifeline with the integrated ratchet. The system is extremely lightweight and portable, owing you to move it and reuse it over and over again. Refer to the user instruction manual for complete operating details including required clearance distances.



Complete Worker Confidence



The built-in shock absorber limits arresting forces during a f and provides the user with a visual impact indicator for added safety. Connection to the lifeline is made by attaching the hook of a shock absorbing lanyard directly to the lifeline for complete ease-of-use. The carrying bag makes transporting and storing the system easy, reduces damage dirt, moisture and UV degradation thus improving the longevity of the system.

Standards and Warranty



Reliability that saves you worry, time and money. PRO-Line™ complies with OSHA requirements. The reputation of Protecta stands behind every one of our products supported by a two year warranty on parts and workmanship.





Specifications:



Lifeline Webbing: 2” (50mm) Polyester, 11,000 lbs. (50 kN) tensile strength Tie-Off Adaptor Webbing: 1-3/4” (44mm) Polyester Strength Member with 3” (75mm) Wear Pad Hardware: Zinc Plated Alloy Steel, 5,000 lb. (22 kN) tensile strength Ratchet: Zinc Plated Steel, 5,000 lb. (22 kN) tensile strength Standards: Meets OSHA standards



PRO-Line™ Horizontal Lifeline System Models:



1200101: 60 ft. (18m) PRO-Line™ Horizontal Lifeline System; lifeline with tensioner, shock absorber and bag, and two 6 ft (1.8m) tie-off adaptors



1200105: 60 ft. (18m) PRO-Line™ Horizontal Lifeline System; lifeline with tensioner, shock absorber and bag





SecuraSpan™ I-Beam Horizontal Lifeline System

The SecuraSpan™ I-Beam Stanchion and Bases are lightweight and extremely easy to inst engineered f protection systems, ideal for steel construction applications. Spans can be up to 60 ft and with the optional “bypass” brackets, the system can be configured to run indefinitely for ultimate jobsite flexibility. All adjustments made top of beam. Fits flanges 6” to 12” wide, 2-1/4” thick. Optional bases for 18”, 24” and 36” widths.



Extremely Lightweight and Portable - Provides fast and easy handling, instation and storage for maximum worker productivity.



Single and Multi-Span Flexibility - Provides complete customization of your system depending upon the clearance below the work area and over length needed.



Pass-Thru 100% Tie-Off Protection - The multi-span intermediate provides bypass capabilities for continuous connection, complete horizontal mobility and 100% protection.



Integrated Energy Absorber - Zorbit™ energy absorber limits f arrest forces on the worker to safe levels, minimizes f clearance needed and protects the structure.



Flexible System Capacity - System capacity of 2 workers per span, with a maximum of 6 workers on multi-span systems provides added jobsite flexibility.



Durable Construction - Extremely rugged zinc plated carbon steel construction provides corrosion resistance for longer service life.



Available Models:



SecuraSpan™ I-Beam System:



* 7400420: 20 ft. Complete

* 7400430: 30 ft. Complete

* 7400440: 40 ft. Complete

* 7400450: 50 ft. Complete

* 7400460: 60 ft. Complete

* 7400047: Stanchion with I-Beam Base

* 7400052: I-Beam Base Only

* 7400008: Intermediate Bypass Bracket Kit



Fast, Easy & Safe Instation



* Single clamp and wing nut design

* All adjustments made top of beam

* Fits flanges 6” to 12” wide, 2-1/4” thick

* Optional bases for 18”, 24” and 36” widthv
